Wasserstein Hypergraph Learning for General 3D Point Cloud Alignment

Overview

Accurate 3D point cloud alignment is used for shape correspondence, reconstruction, and tracking. In practice, alignment is challenging due to non-rigid deformation, partial observations, and noise.

This project studies one key design choice in hypergraph alignment pipelines: how to aggregate neighborhood (hyperedge) information. Instead of mean pooling, we use a Wasserstein-based aggregation that is more sensitive to the distribution of features within a neighborhood.

Full window

What we contribute

Wasserstein aggregation in hypergraph layers: We replace mean pooling in HyperGCT with a sliced-Wasserstein aggregation operator that treats neighborhood features as empirical distributions rather than simple averages.
Placement study: We compare several layer-placement strategies and show that the best placement depends on the dataset and transformation regime.
Consistent matching-based decoding for alignment evaluation: For downstream alignment evaluation, we use a matching-based hypothesis-generation stage in place of HyperGCT’s original post-processing pipeline so that all learned variants are compared under the same decoding procedure.

Beyond point cloud alignment, the core finding is that distribution-aware aggregation can outperform mean pooling in this geometric task, with the strongest gains depending on layer placement and transformation regime. This suggests it can serve as a broadly applicable building block for graph and hypergraph learning, especially in settings where neighborhoods are multi-modal or have high variance. Concurrent work by Duta & Lió^[18] explores related Wasserstein pooling approaches in hypergraph learning more generally.

Problem setup

Given a source point cloud and a target point cloud, our goal is to predict correct point-to-point correspondences between the two shapes (dense or semi-dense), even under partial overlap, noise, and challenging geometric transformations.

We frame this as a classification problem over candidate source-target pairs: each candidate pair is predicted as an inlier (true correspondence) or outlier. During evaluation, candidates are generated using k-nearest neighbors in feature space. In our experiments, we evaluate FAUST^[3] as a piecewise-rigid setting and PartNet^[4] under rigid, 1.5× affine, and 2.0× affine regimes.

Why this matters

Many alignment pipelines rely on local neighborhoods to decide whether a candidate correspondence is geometrically consistent. If neighborhood features are summarized poorly, the model can confuse true matches with outliers, especially under deformation, partial overlap, and noise.

A common choice in learning-based hypergraph alignment (including standard HyperGCT) is to use mean pooling to summarize hyperedge information. Mean pooling is simple and efficient, but it can blur multi-modal neighborhoods and wash out small but important structures. This motivates using a distribution-aware aggregation that better preserves how features are spread within a neighborhood.

Technical note

Let a hyperedge (neighborhood) contain feature vectors \( \{h_1, h_2, \dots, h_k\} \) with \( h_i \in \mathbb{R}^d \). Standard HyperGCT-style aggregation uses mean pooling:

\[ m_{\text{mean}} = \frac{1}{k}\sum_{i=1}^{k} h_i \]

Mean pooling compresses the entire set into one vector, but different neighborhoods can share the same mean even if their feature distributions are very different. To keep distributional information, we treat the neighborhood as an empirical measure:

\[ \mu = \frac{1}{k}\sum_{i=1}^{k} \delta(h_i) \]

Our idea is to aggregate by comparing this distribution to a learned reference distribution \( \nu \) using Wasserstein-inspired transport geometry. A common practical approximation is the sliced Wasserstein distance^[17], which projects features onto 1D directions \( \theta \) and averages projected transport discrepancies:

\[ \mathrm{SW}_2(\mu,\nu) \approx \left( \frac{1}{L}\sum_{\ell=1}^{L} W_2^2\!\left((P_{\theta_\ell})_{\#}\mu,\,(P_{\theta_\ell})_{\#}\nu\right) \right)^{1/2} \]

where \( (P_{\theta})_{\#} \) denotes the pushforward distribution after projection onto direction \( \theta \). In our implementation, these projected transport features are used as learned pooling features rather than as a standalone scalar distance. Intuitively, mean pooling keeps only a simple average, while Wasserstein-style aggregation is more sensitive to how feature mass is arranged, helping preserve multi-modal neighborhood structure.

Baselines

ICP (Iterative Closest Point) ^[1,2]

ICP is a classical alignment method that alternates between assigning closest-point correspondences and updating the transformation. It works well for rigid or near-rigid cases but can be sensitive to initialization and can struggle under partial overlap, noise, and non-rigid deformation.

Technical note: ICP

ICP (Iterative Closest Point) is a classical rigid registration method that alternates between estimating correspondences and updating a rigid transform. Given source points \( \{x_i\}_{i=1}^{N} \) and target points \( \{y_j\}_{j=1}^{M} \), ICP repeatedly:

Assign correspondences by nearest neighbor under the current transform \( (R,t) \):
\[ j(i) = \arg\min_{j} \left\| R x_i + t - y_j \right\|_2 \]
Update the rigid transform by minimizing alignment error over the assigned pairs:
\[ (R,t)=\arg\min_{R\in SO(3),\,t\in\mathbb{R}^3} \sum_{i=1}^{N} \left\| R x_i + t - y_{j(i)} \right\|_2^2 \]

In practice, the transform update is typically solved with a least-squares rigid alignment step (e.g., SVD/Procrustes-style update after centering the matched points).

Why ICP is a useful baseline: it is simple, fast, and often strong for rigid or near-rigid registration when initialization is good.

Common failure modes: ICP can degrade under poor initialization, outliers, partial overlap, and non-rigid deformation because nearest-neighbor assignments may become unstable or geometrically inconsistent early in optimization.

HyperGCT (dynamic hypergraph alignment baseline) ^[5]

HyperGCT builds a dynamic hypergraph over candidate correspondences and uses hypergraph message passing to classify inliers vs. outliers. In the standard HyperGCT pipeline, neighborhood (hyperedge) information is summarized using mean pooling. Our method keeps the same overall structure and replaces this mean pooling step with Wasserstein-based aggregation.

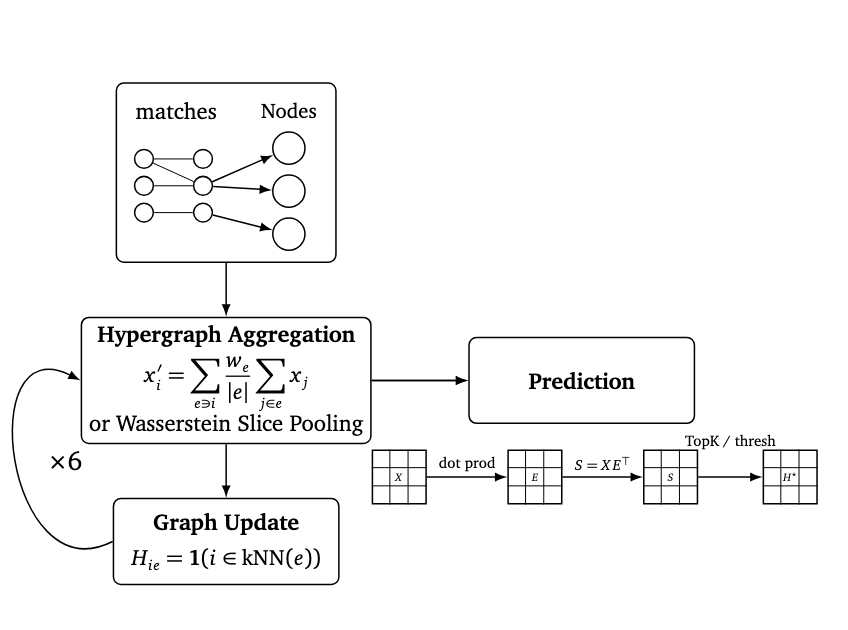

HyperGCT architecture diagram — HyperGCT style pipeline: hypergraph construction, convolution, update blocks, and hypothesis generation.

Technical note: HyperGCT (dynamic hypergraph baseline)

HyperGCT-style alignment treats candidate correspondences as the main objects to score, rather than directly regressing a transform from raw point clouds. A candidate node is a source-target pair \( v=(i,j) \), where source point \( p_i \) is paired with target point \( q_j \).

The key idea is to model higher-order geometric consistency among candidate correspondences using a hypergraph:

Nodes: candidate correspondences \( v=(i,j) \)
Hyperedges: groups of candidates that are likely to be geometrically compatible (e.g., similar local distance/structure patterns)

This is more expressive than a standard pairwise graph because a hyperedge can summarize consistency over a set of candidates at once, which is useful when local geometry is noisy or ambiguous.

In a HyperGCT-style pipeline, the model iteratively performs:

Candidate construction (train/eval candidate pairs)
Dynamic hypergraph construction/refinement over candidate nodes
Hypergraph message passing to update candidate features using neighborhood (hyperedge) information
Inlier scoring for each candidate correspondence
Hypothesis generation / matching to convert scores into a correspondence plan and alignment hypothesis

A simplified hypergraph message-passing view is:

\[ h_v^{(\ell+1)} = \phi^{(\ell)}\!\Big( h_v^{(\ell)}, \operatorname{Agg}_{e \ni v}\big(\{h_u^{(\ell)} : u \in V(e)\}\big) \Big) \]

where \( h_v^{(\ell)} \) is the feature of candidate node \( v \) at layer \( \ell \), \( V(e) \) is the node set of hyperedge \( e \), \( \operatorname{Agg} \) aggregates neighborhood information, and \( \phi^{(\ell)} \) denotes the learnable update block.

In the standard baseline, hyperedge/neighborhood aggregation is typically implemented with a simple mean-style pooling operator:

\[ m_e^{(\ell)} = \frac{1}{|V(e)|}\sum_{u\in V(e)} h_u^{(\ell)} \]

What our project changes: we keep the HyperGCT-style dynamic hypergraph pipeline and candidate scoring setup, but replace this mean hyperedge aggregation step with a Wasserstein-based aggregation in selected layers (first / last / multiple-layer placements).

This isolates the effect of a distribution-aware aggregation operator while preserving the overall baseline structure for a fair placement study.

Method

We use a HyperGCT-style dynamic hypergraph alignment pipeline as the base architecture and isolate one design choice: the hyperedge (neighborhood) aggregation operator used during hypergraph message passing. The baseline uses mean pooling; our WHNN variants replace this operator with a Wasserstein-based, distribution-aware aggregation in selected layers.

This setup lets us study where Wasserstein aggregation is most effective while keeping the rest of the pipeline (candidate construction, hypergraph updates, scoring, and matching/hypothesis generation) as consistent as possible.

Candidate generation: construct source-target candidate pairs \( v=(i,j) \) (training: labeled positives/negatives; evaluation: feature-space kNN candidates).
Dynamic hypergraph construction: treat each candidate pair as a node and group candidate nodes into hyperedges that capture higher-order geometric compatibility.
Hypergraph message passing: update candidate features over multiple layers using hyperedge-level neighborhood aggregation, then predict an inlier confidence score for each candidate pair.
Wasserstein aggregation (our modification): in selected layers, replace mean hyperedge aggregation with a distribution-aware aggregation based on Wasserstein-style comparison of neighborhood feature distributions.
Matching / hypothesis generation: convert predicted inlier scores into a correspondence plan and alignment hypothesis using a consistent matching-based decoding procedure for downstream alignment evaluation.

Technical note: Aggregation replacement (baseline vs WHNN)

Let \( h_u^{(\ell)} \in \mathbb{R}^d \) denote the feature of candidate node \( u \) at layer \( \ell \), and let \( V(e) \) be the node set of hyperedge \( e \).

In a simplified HyperGCT-style layer, node updates use aggregated neighborhood information:

\[ h_v^{(\ell+1)} = \phi^{(\ell)}\!\Big( h_v^{(\ell)}, \operatorname{Agg}_{e \ni v}\big(\{h_u^{(\ell)} : u \in V(e)\}\big) \Big) \]

The baseline aggregation within a hyperedge is mean pooling:

\[ m_{e,\text{mean}}^{(\ell)} = \frac{1}{|V(e)|}\sum_{u \in V(e)} h_u^{(\ell)} \]

In WHNN variants, we replace this with a distribution-aware aggregation. Conceptually, we treat the hyperedge features as an empirical measure \( \mu_e^{(\ell)} = \frac{1}{|V(e)|}\sum_{u \in V(e)} \delta(h_u^{(\ell)}) \) and compute a Wasserstein-style summary relative to learned/reference features. The resulting aggregation output is then used in the same message-passing update block in place of mean pooling.

Intuitively, this preserves more information about how feature mass is distributed inside the neighborhood (e.g., multi-modal structure) than a single mean vector.

Technical note: Placement configurations (ablation variable)

Our main ablation studies where Wasserstein aggregation is inserted in the hypergraph message-passing stack. We evaluate the following placement variants:

First layer
First 2 layers
Last layer
Last 2 layers
First + Last
All layers

Each variant keeps the same overall pipeline and output head, changing only the aggregation operator at the specified layers. This isolates placement effects and supports a fair comparison against the mean-pooling HyperGCT baseline.

What is held constant in the ablation

Fixed: candidate construction protocol, dynamic hypergraph pipeline structure, scoring head, and evaluation metrics.
Varied: hyperedge aggregation operator placement (mean vs Wasserstein-based in selected layers).
Reported: pair classification metrics (Precision/Recall/F1), optimization terms/diagnostics, and downstream matching quality.

This experimental design is intended to attribute performance differences primarily to the aggregation operator and its placement, rather than to changes in the surrounding architecture.

Evaluation

We evaluate correspondence prediction as binary classification over candidate source-target pairs. At test time, candidates are built using label-blind feature kNN retrieval between the two point clouds.

Data

Datasets: FAUST^[3] and PartNet^[4].
Settings: FAUST is evaluated as a piecewise-rigid alignment setting, while PartNet is evaluated under rigid, 1.5× affine, and 2.0× affine regimes.
Transformation regimes: The evaluation spans one piecewise-rigid setting and three PartNet regimes of increasing difficulty.

Protocol

Candidate set: kNN in feature space (label-blind) between source and target.
Prediction: model outputs an inlier confidence per candidate pair.
Matching: convert confidences into a matching plan using greedy expansion or two-stage spectral matching, depending on the experiment.

Pair metrics

Precision / Recall / F1 on candidate inlier classification.
Training signals: classification loss, graph loss, matching MSE (reported as curves/summary values).

Matching metrics

Distance-aware error: deviation from ground-truth target locations over predicted matches.
Hypothesis quality: evaluate correspondence accuracy after converting scores to a matching plan.

Structure diagnostics

Aggregatedness: how concentrated predictions become within hyperedges.
Disjointness: separation between hyperedges / neighborhood overlap behavior.
In-edge distance consistency: variance of point distances among pairs within the same hyperedge.

These structural diagnostics are useful for interpreting representation quality, but they are not complete proxies for end-task performance: the configuration with the best diagnostic values is not always the one with the best final alignment result.

Metric definitions

Precision / Recall / F1: \( \mathrm{Precision} = \frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FP}} \), \( \mathrm{Recall} = \frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FN}} \), and \( \mathrm{F1} = \frac{2PR}{P+R} \).

Aggregatedness: measures how concentrated predicted inlier mass is within hyperedges. Let \( s_v \) be the predicted inlier score for node (candidate pair) \( v \). For each hyperedge \( e \) with nodes \( V(e) \), define the normalized mass \( p_v = \frac{s_v}{\sum_{u \in V(e)} s_u + \varepsilon} \). Aggregatedness is the average concentration over hyperedges:

\[ A = \frac{1}{|E|}\sum_{e\in E}\sum_{v\in V(e)} p_v^2 \]

Higher \( A \) means scores collapse onto a few nodes per hyperedge (more “peaky”); lower \( A \) means scores are spread out.

Disjointness: measures how much hyperedges overlap in membership. For hyperedges \( e \) and \( f \), define overlap via Jaccard similarity \( J(e,f) = \frac{|V(e)\cap V(f)|}{|V(e)\cup V(f)|} \). Disjointness is one minus average overlap over sampled/neighboring hyperedge pairs:

\[ D = 1 - \frac{1}{|P|}\sum_{(e,f)\in P} J(e,f) \]

Higher \( D \) means hyperedges share fewer nodes (cleaner separation).

In-edge distance consistency: measures geometric consistency within each hyperedge. Each node \( v=(i,j) \) corresponds to a source point \( p_i \) and target point \( q_j \). For a hyperedge \( e \), compute pairwise source distances \( d_{\text{src}}(v,u)=\lVert p_i-p_{i'}\rVert \) and target distances \( d_{\text{tgt}}(v,u)=\lVert q_j-q_{j'}\rVert \) for nodes \( v=(i,j) \), \( u=(i',j') \). The consistency error per pair is \( \Delta(v,u)=\lvert d_{\text{src}}(v,u)-d_{\text{tgt}}(v,u)\rvert \). We report variance within each hyperedge, averaged across hyperedges:

\[ C = \frac{1}{|E|}\sum_{e\in E} \operatorname{Var}_{v,u\in V(e),\,v\neq u}\!\big[\Delta(v,u)\big] \]

Lower \( C \) means a hyperedge’s correspondences agree more strongly on geometry.

Results & takeaways

Across all evaluated regimes, at least one Wasserstein configuration improves over the learned HyperGCT mean-pooling baseline. The best placement, however, depends on the dataset and transformation setting: on FAUST, all-layer aggregation performs best, while on PartNet the strongest learned configuration changes across rigid, 1.5× affine, and 2.0× affine regimes. In the easiest rigid PartNet setting, ICP remains nearly perfect even though Wasserstein-based variants strengthen the learned model.

Headline comparison

The summary table below highlights the strongest Wasserstein placement for each dataset/regime against the HyperGCT baseline.

Dataset	Best WHNN placement	HyperGCT F1	Best WHNN F1	ΔF1
FAUST	All layers	0.978	0.991	+0.013
PartNet (rigid)	Last 2 layers	0.917	0.993	+0.076
PartNet (1.5×)	Last 2 layers	0.823	0.959	+0.136
PartNet (2.0×)	First + Last	0.782	0.956	+0.174

Figure-based interpretation

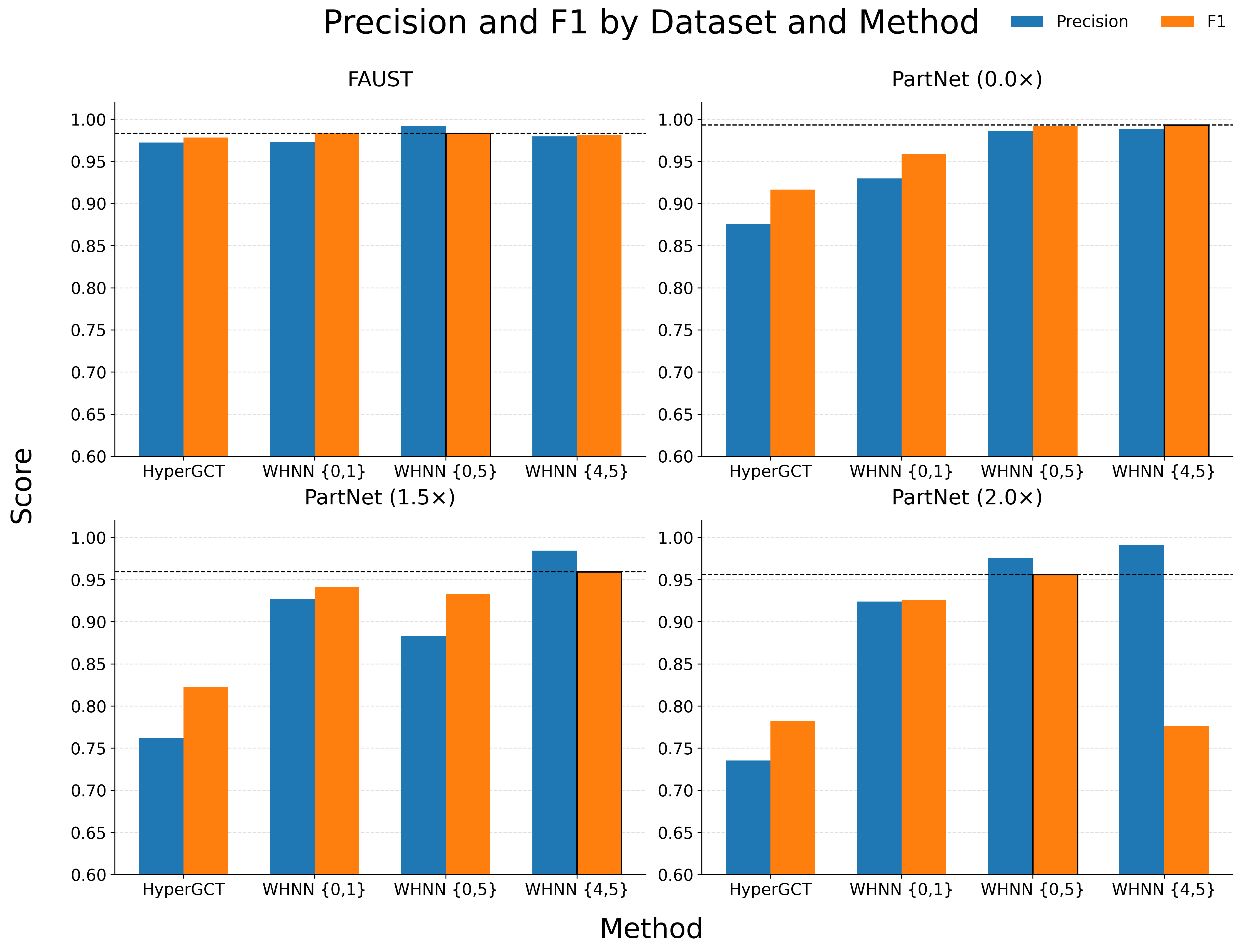

Precision and F1 by Dataset and Method — Precision and F1 scores by dataset and method across transformation regimes.

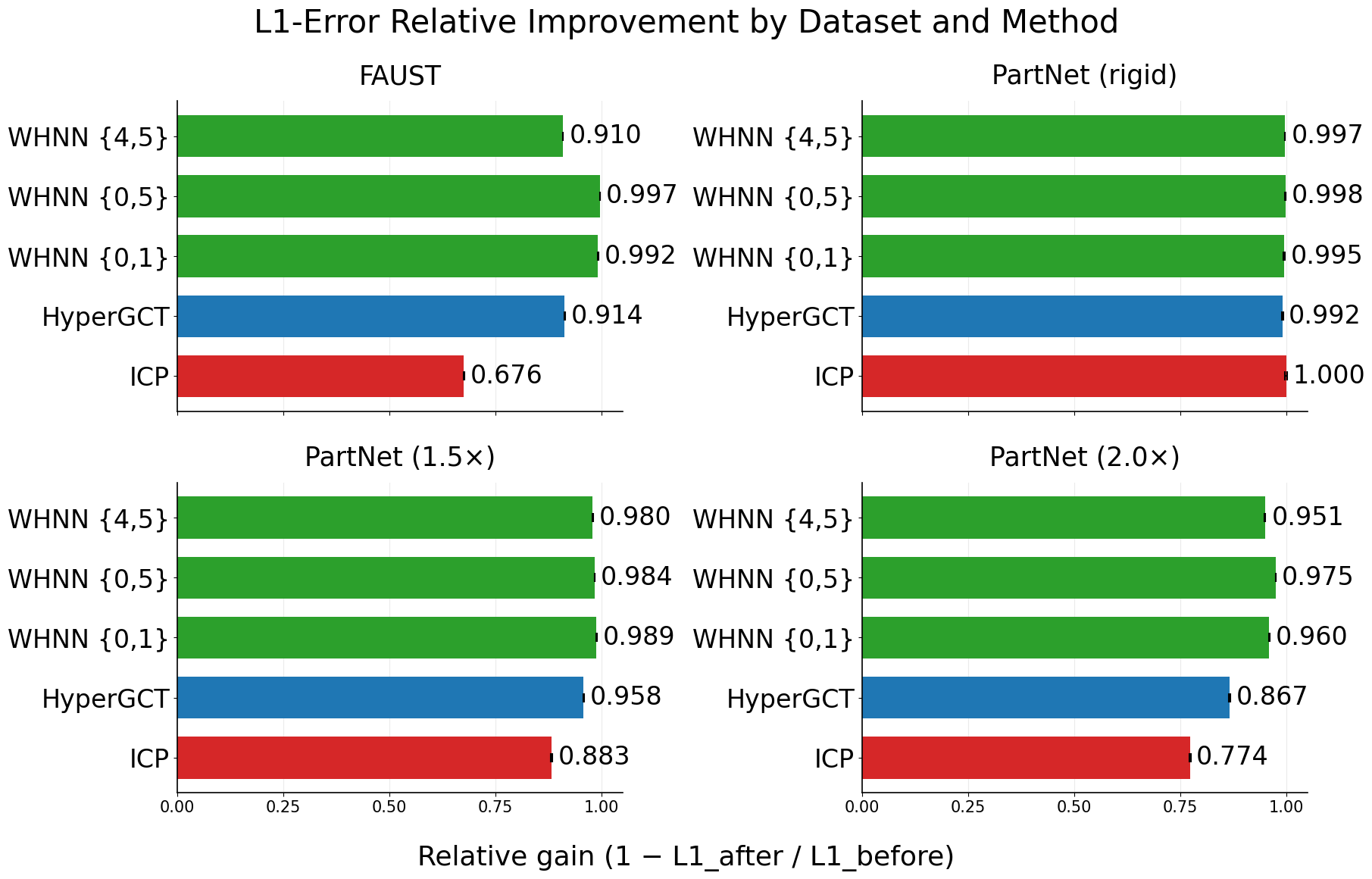

L1-Error Relative Improvement by Dataset and Method — L1-error relative improvement, computed as (1 − L1_after / L1_before).

Consistent improvement over the learned baseline: In every evaluated regime, at least one Wasserstein configuration outperforms mean-pooling HyperGCT.
Placement is an architectural choice: The best insertion pattern changes across FAUST and PartNet regimes rather than staying fixed across settings.
Diagnostics are useful but incomplete: Structural metrics help explain representation changes, but they are not perfect proxies for final alignment quality.

A central pattern in the report is that Wasserstein aggregation does not help in exactly the same way at every depth. On FAUST, applying it throughout the network works best, suggesting that preserving distributional structure across the full feature hierarchy is helpful in this piecewise-rigid setting. On PartNet, the best configuration changes across rigid, 1.5× affine, and 2.0× affine regimes, indicating that early and late aggregation play different roles as the registration problem becomes harder.

For full per-configuration metrics (including diagnostics and losses), expand the complete ablation table.
